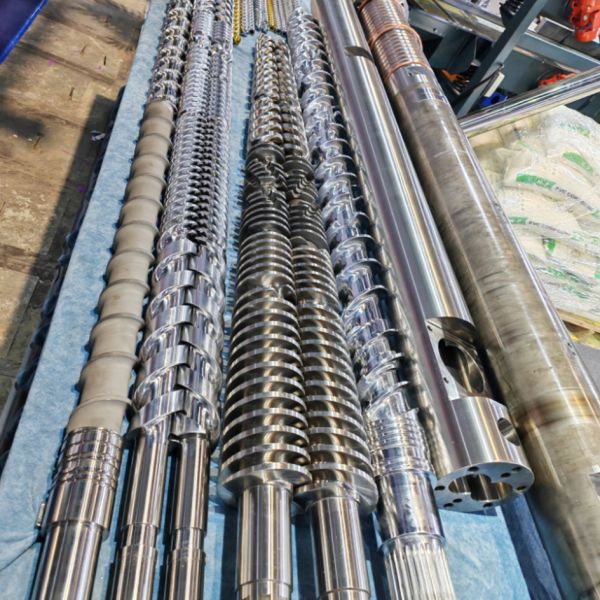

Customized Conical Twin Screw and Double Screw Screw Barrel Set for Electroplating Hard Chromium Layer Plastic Extruder

Name: Customized Conical Twin Screw and Double Screw Screw Barrel Set for Electroplating Hard Chromium Layer Plastic Extruder
Brand: WeSeW
Price: 200 USD

Wholesale Customized Conical Twin Screw and Double Screw Screw Barrel Set for Electroplating Hard Chromium Layer Plastic Extruder from china suppliers

Brand Name : WeSeW

Model Number : W007

Certification : CE/UL

Place of Origin : china

MOQ : 1 pc

Price : US$200~US$1,000 per pc

Payment Terms : T/T,Western Union

Supply Ability : 10,000 pieces per month

Delivery Time : 10-20 working day

Packaging Details : Wooden Case

Product Type : Profile Extrusion Molding Machine

Feeding Mode : Multiple Feed

Assembly Structure : Integral Type Extruder

Screw : Single-Screw

Engagement System : Full Intermeshing

Screw Channel Structure : Deep Screw

Product Name : Conical Twin Screw and Barrel Double Screw and Barrel for Plastic Extruder

Screw design : Plastify Extruder Single Screw Barrel

Threadpitch : 1.5mm

Screw Type : Single Or Twin

Threadtype : Metric

Usage : Industrial screw production

Application : Plastic granulating machine

Productname : Screw Barrel Set

Structure : Conveyor System

Quenching Hardness : HRC 58-62

Length : 200mm

Warranty : 12 months manufacturer warranty

Contact Now

Conical Twin Screw and Barrel Double Screw and Barrel for Plastic Extruder

Application	Film blower, Cast film machine
Screw barrel material	38CrMOALA, SACM645, Sprayed dual alloy, etc.
Screw diameter	Φ30-Φ150
Aspect ratio	L/D=15-35
Overall hardness	HRC58°-68°
Nitriding depth	0.4mm-0.7mm
Straightness	0.015mm-1000mm
Scope of application	PE, PO, PP, PVC, TPU, PBT, PET, PLA, etc.
Technical indicators	Conditioning time 72H, Tempering hardness HB260-290, Gas vacuum nitriding time 168H, Nitride hardness HRC62-65°
Processing method	Vacuum nitriding, high frequency quenching, alloy spraying, electroplating hard chromium layer
Condition	New
Warranty	1 Year
Package	Wooden box
Notice	We only accept product customization, please be sure to contact me before placing an order.

Product Description:

The screw is the main core component of the injection molding machine. The quality of the screw determines the quality of the product.
The plasticizing screw of the injection molding machine has the functions of conveying, melting, mixing, compressing, metering and exhausting, and is a key factor affecting the quality of plasticizing.

Injection molding machine screw material classification:
1. HPT fully hardened powder alloy screw
It is made of tungsten-cobalt powder alloy tool steel and is integrally hardened by a special process. The overall hardness of the inside and outside of the screw is the same, reaching about HRC65°. It is suitable for processing various transparent products, precision products, and special high-temperature and highly corrosive plastics such as LCP, PES, and PPA with fiber added.
2. Double alloy screw
Use SACM645 and 38CrMoAlA as the base material, and then ion spray weld the tungsten carbide nickel-based alloy on the crest or groove. The surface hardness of the screw is around HRC60°. It is suitable for processing various transparent products and engineering materials such as PA6 and PA66 with fiber added.
3. Electroplating screw
SACM645 and 38CrMoAlA are used as base materials. After forming, the outer surface is electroplated with a layer of hard chromium, nickel, titanium and other elements. The hardness is around HRC60°. Suitable for processing PC, PMMA, PET transparent materials and corrosive plastic U-PVC materials.
4. Stainless steel screw
The material is 9Cr18MoV special stainless tool steel, which adopts overall quenching + overall hardening treatment. The overall hardness is around HRC55°.
5. SKD61 screw
Made of Hitachi SKD61 material and processed with a special process, the product has good toughness and strong torsion resistance.
6. Ordinary nitrided screw
It is made of SACM645 and 38CrMoAlA as the base material and processed with a special process. The depth of the nitride layer is 0.5-0.8mm and the overall hardness is HV980~1080°. Suitable for processing ordinary plastics, such as PP, ABS, PS, AS, PVC and other ordinary plastics.

Injection molding machine screw segmentation description:
The screw of an injection molding machine can generally be divided into a feeding section, a compression section, and a homogenizing section (also called a metering section). (Note: Different screws have different proportions of the three sections, different screw groove depths, and different screw bottom diameter transition forms)
1. Injection molding machine screw feeding section
The depth of this section of the screw groove is fixed, and its function is responsible for preheating, conveying and pushing plastic solids. It must be ensured that the plastic begins to melt at the end of the feed section.
2. Injection molding machine screw compression section
This section is the groove depth of the tapering screw, and its functions are melting, mixing, shearing compression and pressurized exhaust of plastic raw materials. The plastic will completely dissolve in this section and the volume will shrink. The design of the compression ratio is very important.
3. Injection molding machine screw homogenization section
This section has a fixed groove depth for the screw groove. Its main functions are mixing, melt transportation, and metering. It must also provide sufficient pressure to maintain a uniform temperature of the melt and stabilize the flow rate of the molten plastic.

Customized Conical Twin Screw and Double Screw Screw Barrel Set for Electroplating Hard Chromium Layer Plastic Extruder
